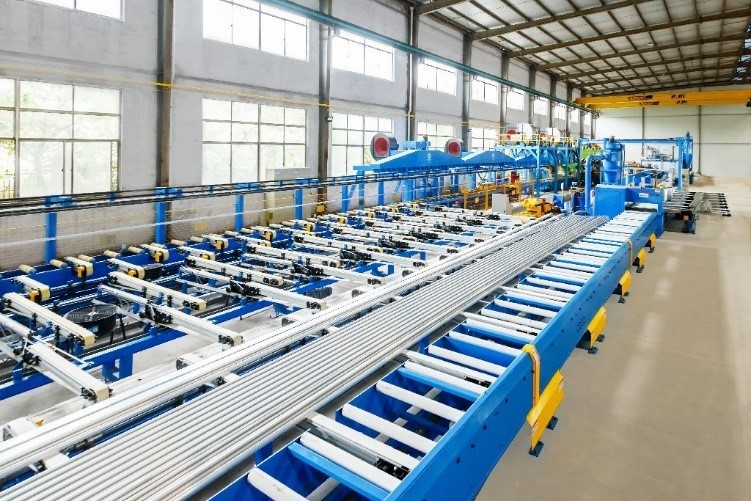

Aluminium Extrusion Presses

An aluminum extrusion press is a specialized machine used in the aluminum extrusion process to produce various shapes and profiles from heated aluminum billets. As a critical component of the extrusion process, the press exerts high pressure on the softened aluminum billet, pushing it through a die to form the desired cross-sectional shape. Let's explore the key features and functions of an aluminum extrusion press as a machine:

1. Structure and Design: Aluminum extrusion presses are robust, heavy-duty machines designed to handle large forces and high temperatures. The primary components of an extrusion press include:


   • Frame: The frame provides the structural support for the press and houses the hydraulic or mechanical systems that generate the force required for extrusion.


   • Hydraulic System: Most modern aluminum extrusion presses use hydraulic systems to apply force to the billet. Hydraulic cylinders act as rams or plungers to exert pressure on the aluminum, pushing it through the die.


   • Container: The container holds the heated billet and withstands the pressure during extrusion. It is a substantial structure made from high-strength materials.


   • Die: The die is a precision tool made of hardened steel, with an opening that determines the shape of the extruded profile. It is crucial for maintaining the accurate dimensions of the final product.


2. Press Capacity: Aluminum extrusion presses come in various sizes, with different tonnages of force capacity. The press's tonnage determines the maximum force that can be applied to the billet during extrusion. Presses can range from a few hundred tons to several thousand tons of force.


3. Heating and Temperature Control: An integral part of the press is the billet heating system. The press is often connected to a furnace where the aluminum billets are preheated to the correct temperature before extrusion. Precise temperature control is essential to achieve uniform material flow and consistent extrusion results.


4. Billet Handling System: To maintain a continuous extrusion process, an aluminum extrusion press may be equipped with an automated billet handling system. This system feeds new billets into the press as the previous billet is extruded, ensuring a smooth and uninterrupted production flow.


5. Process Monitoring and Control: Advanced extrusion presses are equipped with sophisticated control systems to monitor and regulate various parameters during the extrusion process. Temperature, pressure, speed, and other factors are continuously monitored to ensure optimal production conditions and consistent quality.


6. Safety Features: Due to the high forces and temperatures involved in the extrusion process, safety features are incorporated into the press design. Emergency stop systems, interlocks, and safety curtains are employed to protect operators and prevent accidents.


7. Post-Extrusion Operations: After extrusion, the press can be integrated with additional equipment for cutting, stretching, cooling, and handling the extruded profiles.

Aluminum extrusion presses are the heart of the extrusion process, enabling the efficient production of a wide range of aluminum profiles used in various industries, such as construction, transportation, electronics, and more. Their capabilities and advanced features contribute to the consistent and high-quality output of extruded products.
